XuRiDong is one of the earliest manufacturers of pulp molding equipment in China, and it is also the company that established the research institute earlier in the paper molding industry. It mainly produces pulp equipment, pulp molding equipment, clean pulp equipment, environmental protection equipment and garbage disposal equipment in five categories, with more than 60 series and more than 200 kinds of products, and 36 kinds of products have obtained national patents.

雙盤磨漿機是引進國外轉讓技術，漿料由兩根進漿管進入磨區中心，在離心力和進漿壓力的作用下通過磨區，經過磨區內齒盤的搓揉擠壓完成打漿過程。適合化學木漿、機械漿、廢紙漿的連續打漿，適宜漿料濃度2-5%，配有自動控制系統，實現恒能耗或恒功率打漿，打漿效果穩定。

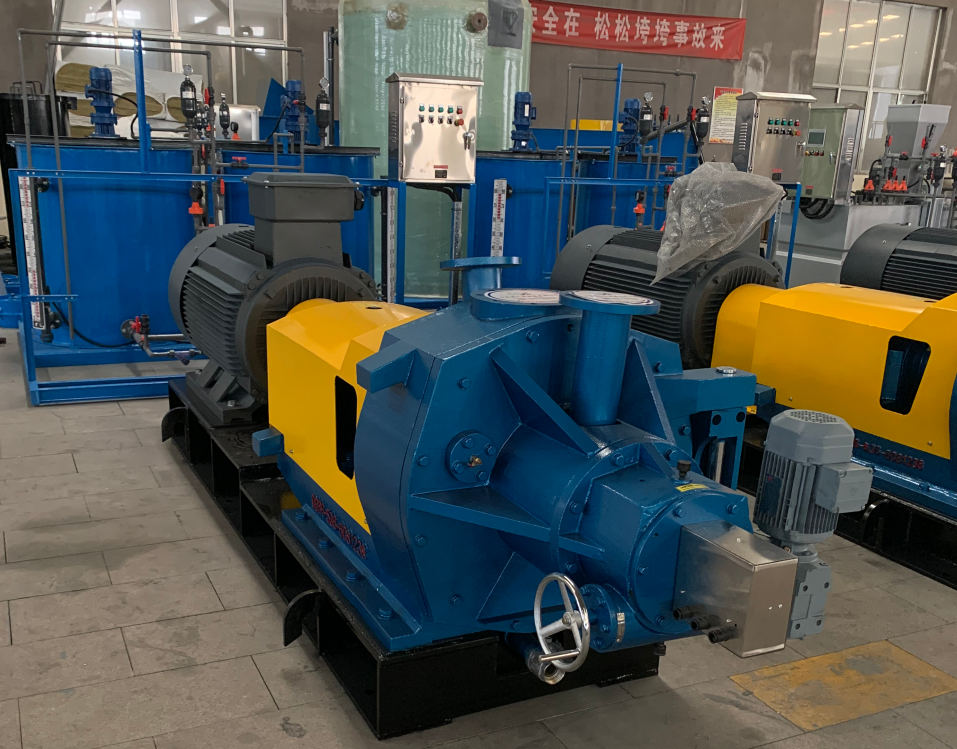

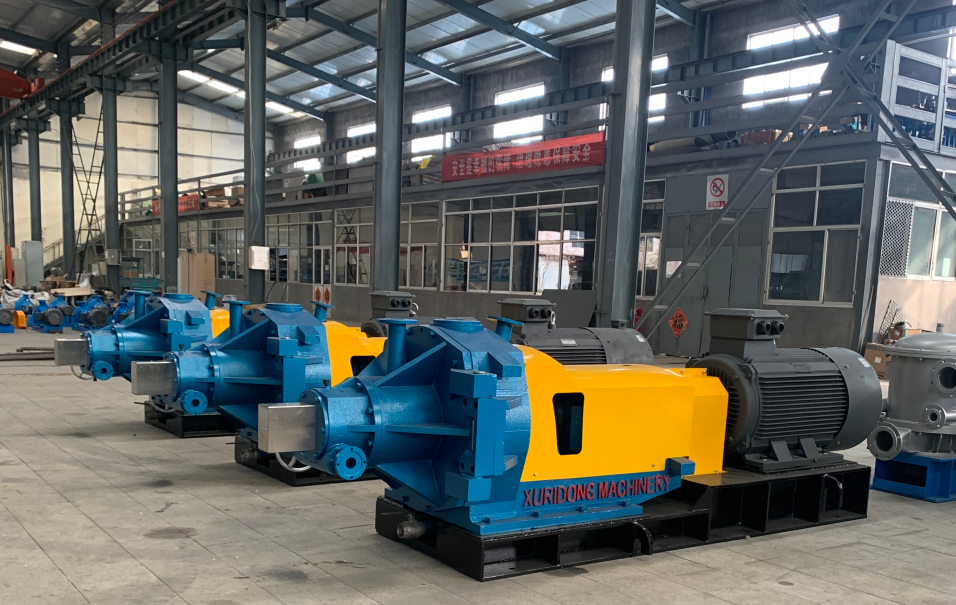

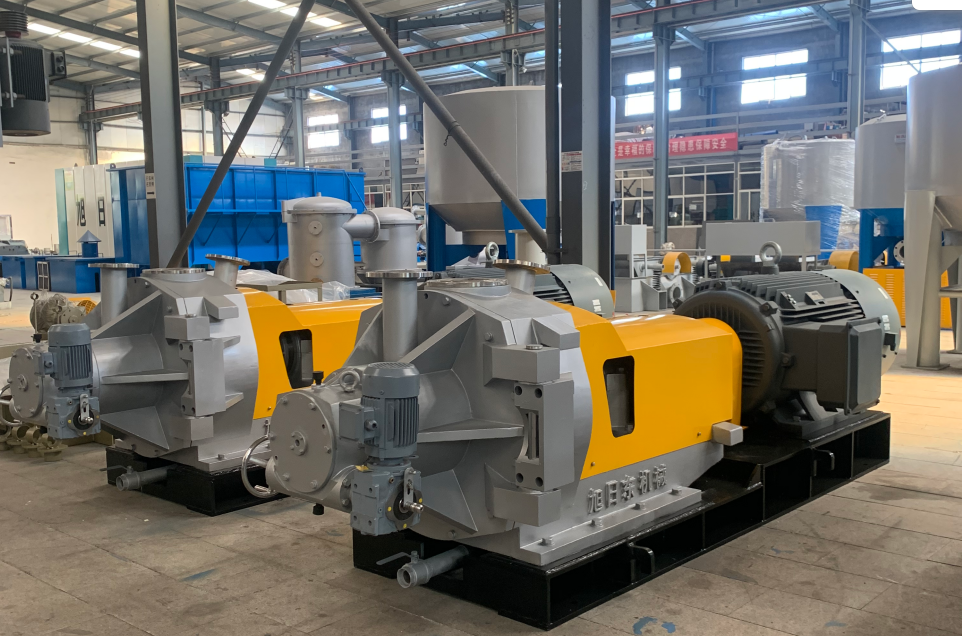

The double disc refiner is an imported technology transferred from abroad. The pulp enters the center of the grinding zone through two inlet pipes, and passes through the grinding zone under the action of centrifugal force and inlet pressure. The pulp is then kneaded and squeezed by the toothed disc in the grinding zone to complete the pulping process. Suitable for continuous pulping of chemical wood pulp, mechanical pulp, and waste pulp, with a suitable pulp concentration of 2-5%, equipped with an automatic control system to achieve constant energy consumption or constant power pulping, and stable pulping effect.

●工作原理 working principle

雙盤磨漿機由磨漿室、傳動機構、底座、電動機等組成。磨漿室由固定在機殼和移動座上的兩個固定磨片與安裝在轉動盤上的兩個轉動磨片，形成兩個磨區。通過調換不同齒形的磨片，以適應各種漿料的打漿要求。

它具有占地面積小，生產效率高、電耗低、操作方便、維修容易等特點。適用于多種漿料的成漿打漿，是目前較為理想的成漿打漿設備。根據工藝要求，本機可單臺使用，也可多臺串聯使用。

It has the characteristics of small footprint, high production efficiency, low power consumption, easy operation, and easy maintenance. Suitable for pulping and pulping of various pulp materials, it is currently an ideal pulping and pulping equipment. According to the process requirements, this machine can be used as a single unit or in series with multiple units.

●產品介紹 instruction

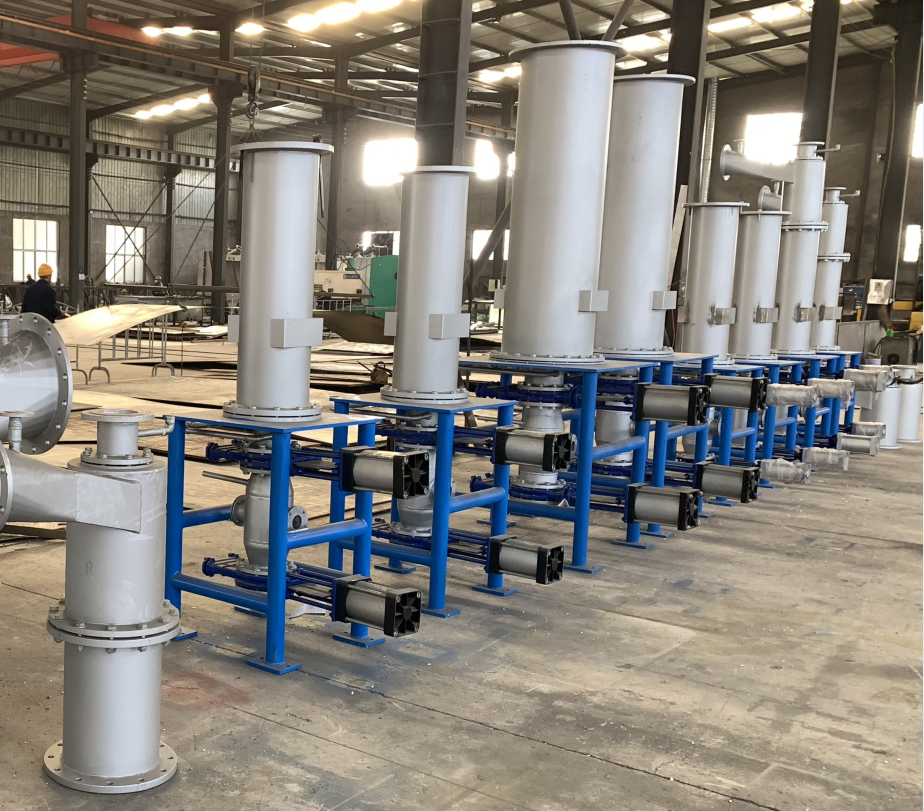

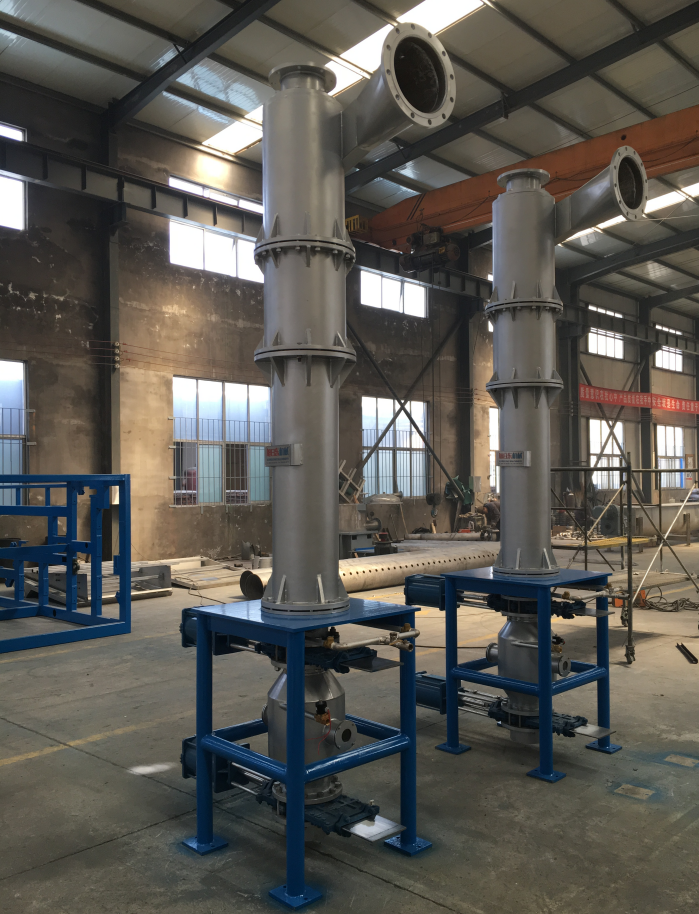

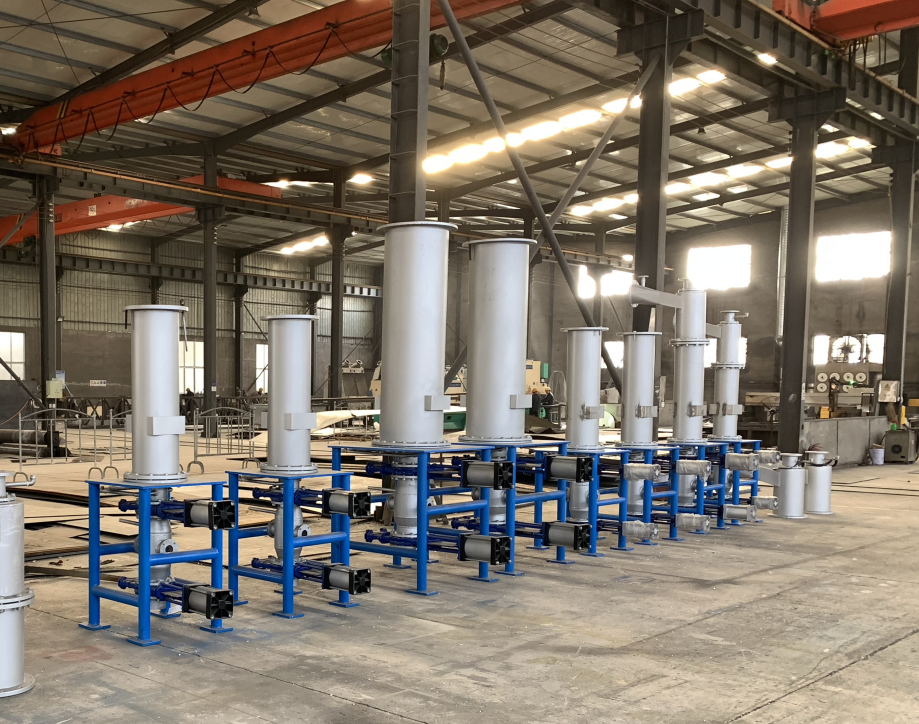

該除渣器由耐磨材料制成的進口頭、雙錐體、氣動控制部分組成。紙漿在一定壓力下沿切線方向進入除渣器，利用進出口壓差作動力，使紙漿沿錐體作螺旋運動并產生離心力，紙漿中的重雜質在離心力作用下，被拋向上錐體內表面，并靠重力作用向下運動，良漿由中間的上出口排出。重雜質及部分纖維下沉至下錐體，在沖洗水作用下進行反沖洗滌，使纖維上浮至上錐體沿良漿方向排除，，重雜質經下錐體球閥下沉至由鑄鐵制成的沉渣罐內。沉渣罐上設有給水口、排氣口、排渣門、視窗，供清洗、排氣、觀察及排渣用。在進口頭上還裝有進出口壓力指示表，供運行中觀察進漿壓力及進出口壓差。

●產品介紹 instruction

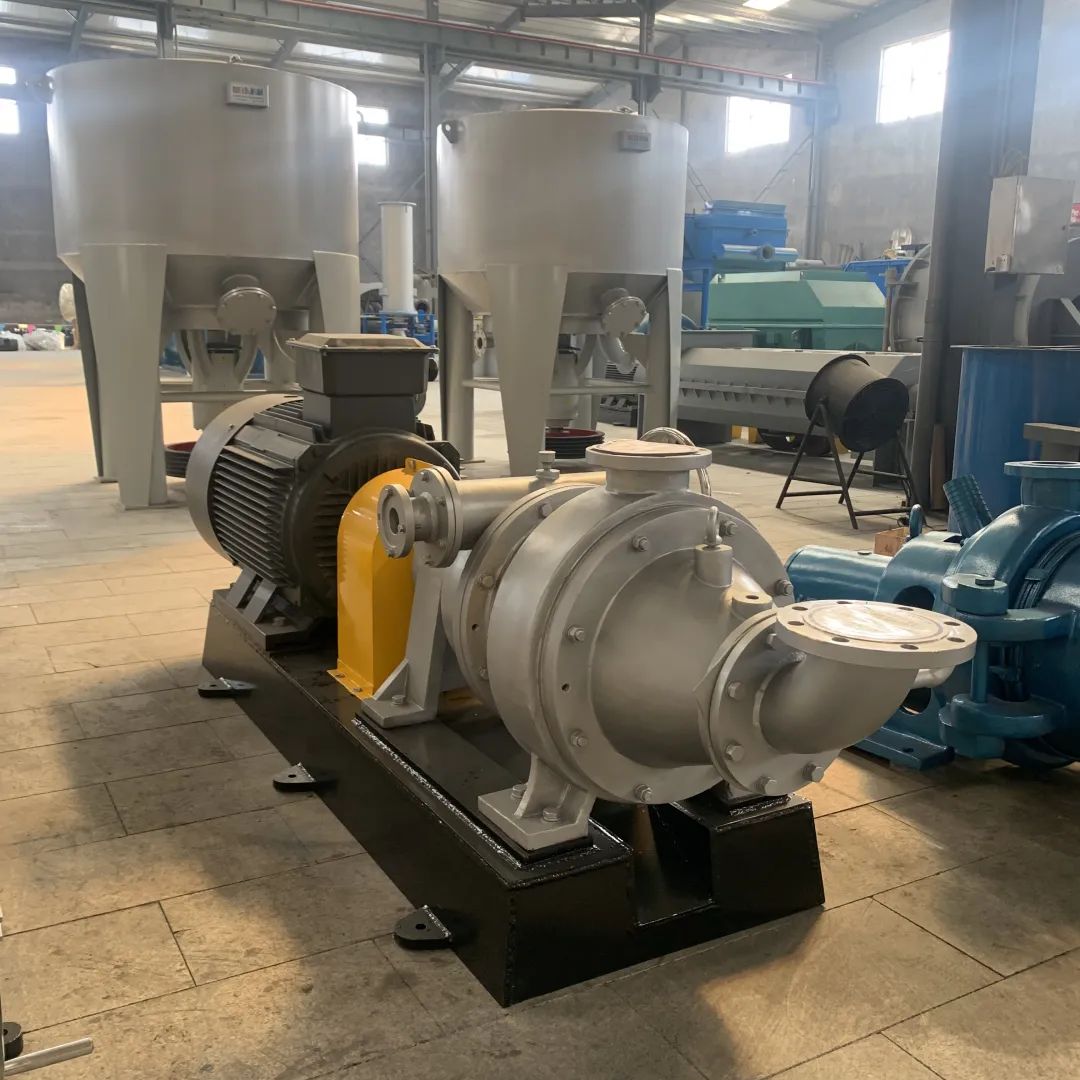

XuRiDong  has introduced Japanese technology to develop the XDLC series high-frequency, which integrates pulping, dewatering, and sand removal, and has the function of one machine with multiple uses. This machine is capable of completely dissociating various fibers such as grass fibers, recycled fibers from waste paper, glass fibers, ceramic fibers, and asbestos fibers, especially in processing high moisture strength waste paper, with excellent results and very high processing efficiency. Such as processing waste paper of RMB, invoice, military map, tableware, electronic packaging, stainless steel protective film, etc., wet strength paper with added wet strength agents, oil proof agents, and waterproof agents. Simultaneously remove impurities such as sand, gravel, metal, etc.

IV. XDLC IV type is installed vertically with a small footprint, equivalent to one-third of the horizontal installation. It is easy to maintain and the equipment's sand removal not only relies on centrifugal force, but also utilizes the self weight of sand particles to remove coarse impurities. The rotor can also operate in both directions, which is beneficial for improving sand removal efficiency and the service life of the rotor.

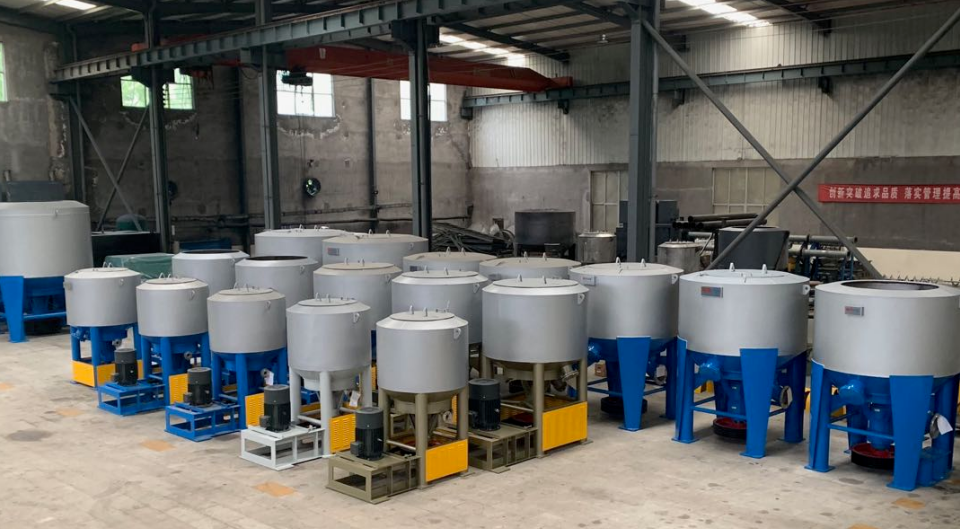

水力碎漿機是造紙工業用來碎解漿板、廢紙、廢紙箱及抄損的設備。是槽內轉盤葉片的機械作用和轉盤旋轉帶動中濃攪籠的推進所引進的撕碎作用而達到破碎疏解的目的。

金屬槽水力碎漿機由立式開口金屬槽，帶有葉片轉盤支架，轉子裝帶膠置傳動，閘板閥等組成。

目前公司新開發的節能型碎漿機，在同樣容積和同樣動力前提下，產量可以提高一倍。

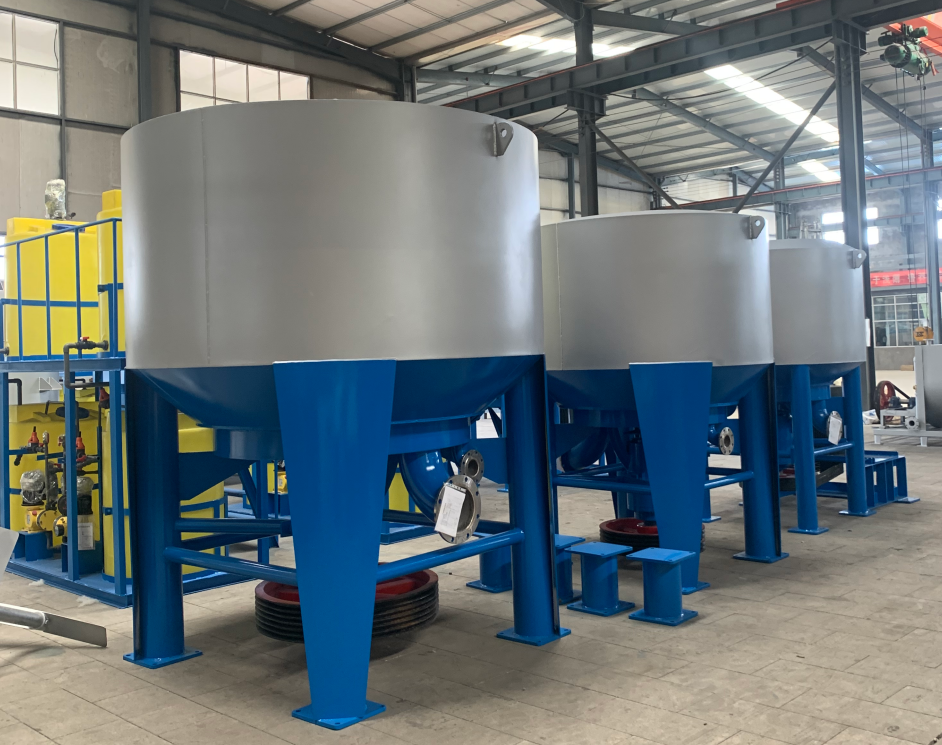

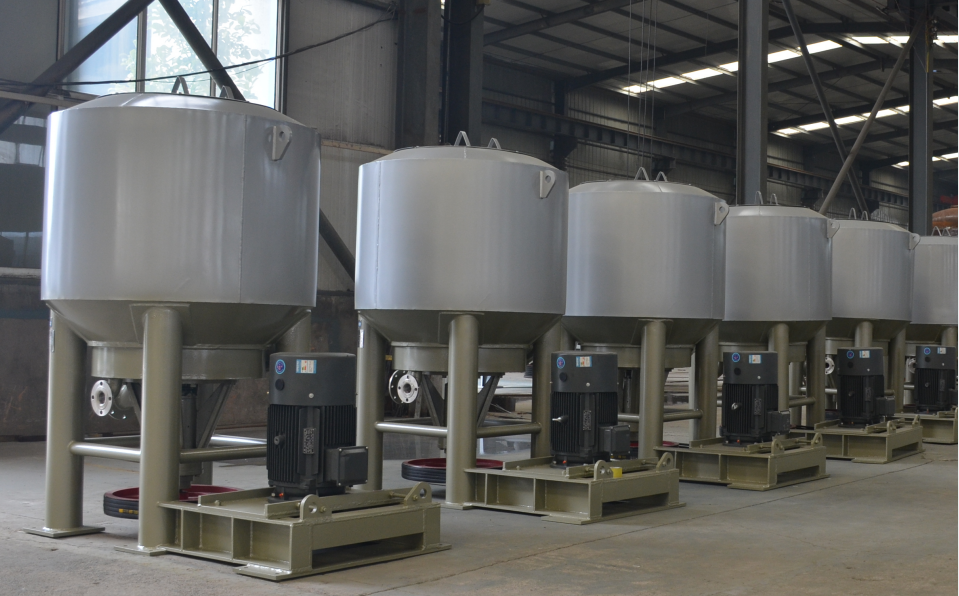

Hydrapulper is a device used in the paper industry to shred pulp boards, waste paper, waste paper boxes, and paper scraps. It is the mechanical action of the rotating disc blades in the groove and the shredding effect introduced by the rotation of the disc to drive the medium concentration mixing cage, which achieves the purpose of crushing and dispersing.

The metal tank hydraulic pulper consists of a vertical open metal tank, a blade turntable bracket, a rotor with adhesive transmission, a gate valve, etc.

At present, the company's newly developed energy-saving pulping machine can double the output under the same volume and power conditions.

●工作原理 working principle

The main function of the vertical low concentration hydrapulper is due to the mechanical action of the rotary blades and the hydraulic shear effect caused by the rotation of the rotor. When the rotor rotates, the slurry, paper material, and water flow are sucked in along the central axis and thrown out at high speed from the outer circumference of the rotor, forming a strong turbulent circulation. Due to the strong impact and tearing of the blades on the slurry, as well as the huge friction between different speed liquid layers, the slurry blocks and paper materials are strongly broken and dissociated in the liquid state. Unbroken paper sheets and fiber bundles are further dispersed between the rotor blades and the sieve plate. Good slurry that meets the requirements must flow out of the pulper through a certain specification of sieve holes.

●參數選型 model

目前碎漿機根據客戶要求定制，最小可以做160升和0.5m³實驗型設備，最大可以做到單機100m³，超過30立方碎漿機需要單獨定制，可以致電公司電話0536-6081238，技術資料單獨發給客戶。

At present, the pulper can be customized according to customer requirements, with a minimum capacity of 160 liters and 0.5m ³ experimental equipment, and a maximum capacity of 100m ³ per machine. If the capacity exceeds 30 cubic meters, the pulper needs to be customized separately. You can call the company at 0536-6081238 and send technical information separately to the customer.

●產品介紹 instruction

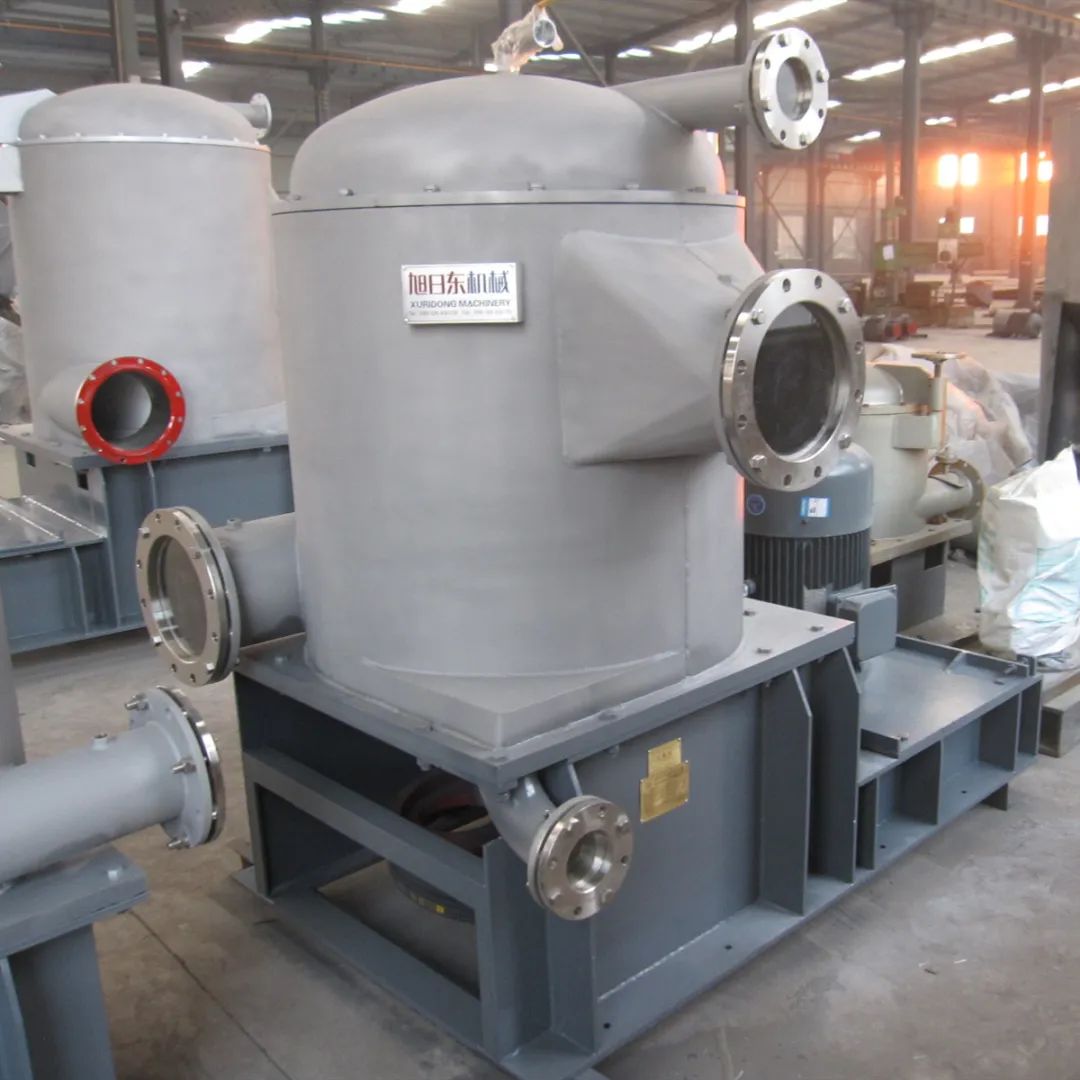

XRUV型升流式壓力篩是我廠消化吸收進口樣機技術研制開發出來的一種新型再生紙漿料篩選設備。該設備針對再生紙漿中雜質的特性設計為升流式結構，可廣泛應用于各種廢紙漿的粗篩、精篩及紙機前漿料的篩選，具有無可比擬的良好工作性能和可靠性，是各種國產壓力篩用于再生漿處理的更新?lián)Q代產品。

●工作原理 working principle

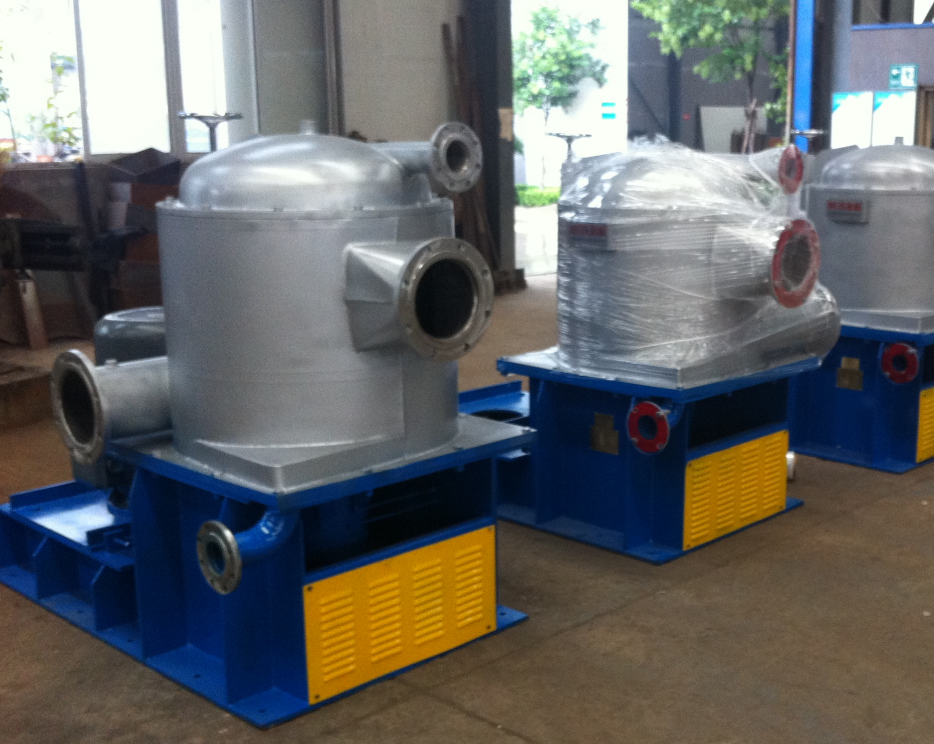

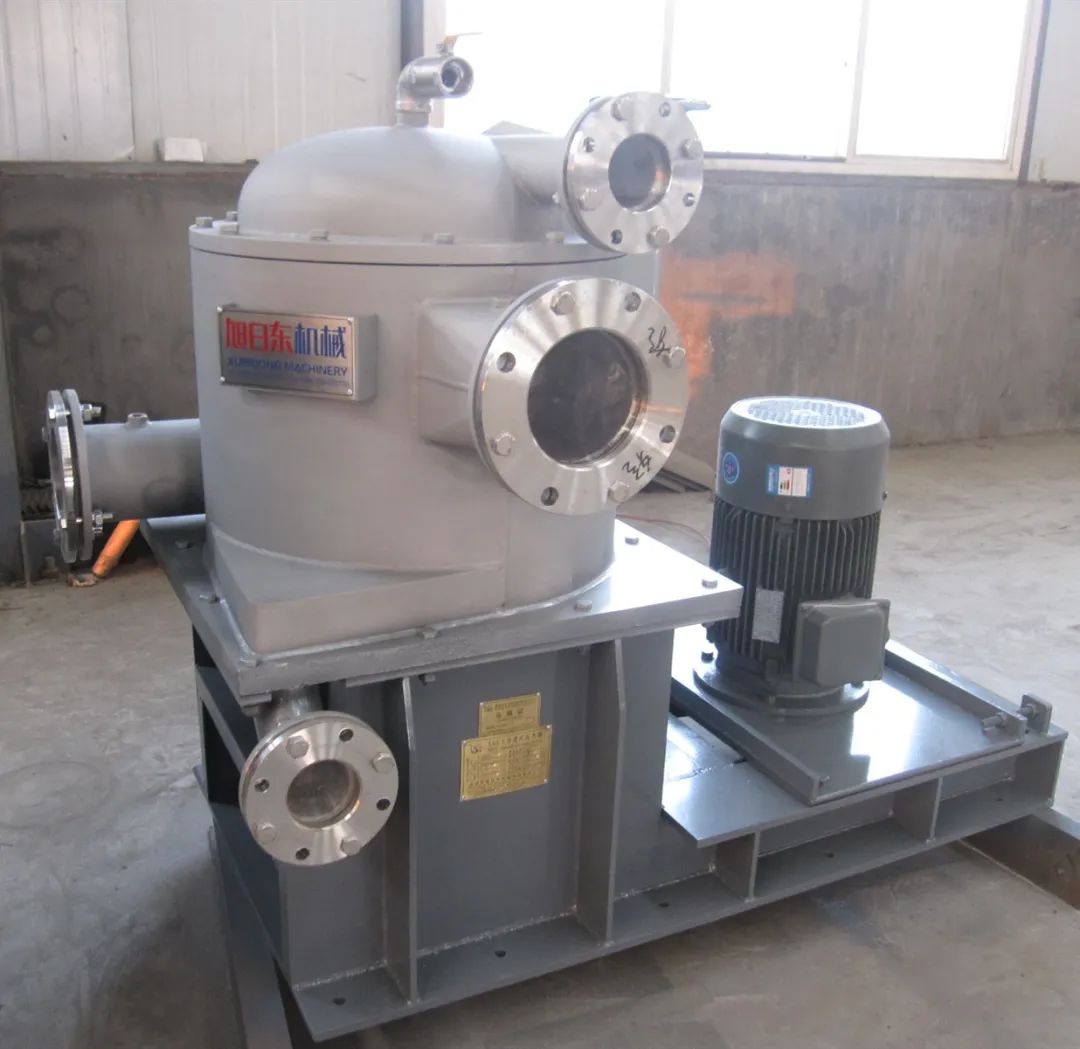

The UV type pressure screen adopts an upward flow structure design with bottom slurry inlet, bottom heavy slag discharge, and top light slag discharge, effectively solving the above problems. Light impurities and air in the slurry naturally rise to the top slag discharge outlet and are discharged, while heavy impurities can settle and be discharged from the bottom slag discharge outlet as soon as they enter the machine. In this way, on the one hand, it effectively shortens the residence time of impurities in the screening area, reduces the possibility of impurity circulation, and improves the screening efficiency; On the other hand, it prevents damage to the rotor and screen drum caused by heavy impurities, extending the service life of the equipment.

1、采用寬為0.15mm的精篩篩鼓，設置在粗篩之后，可有效去除漿中細小雜質及尺寸大于200um的油墨粒子，尤其值得注意的是對漿中膠粘物的去除率可達90%以上，是目前國內外推崇的代替各種熱分散設備的最新設備技術方法(關于縫篩篩選法同熱分散法解決膠粘物問題的比較詳見華南理工大學制漿造紙工程國家重點實驗室陳嘉翔教授撰寫的刊登在《紙和造紙》2000年第三期“縫篩代替分散機在廢紙系統的應用”一文)。

2、重雜質排入篩體底部的重雜質罐，防止轉子與篩鼓磨損及損傷，減少停機時間。

3、輕雜質和空氣從頂部尾漿口迅速排出。

4、篩選效率高，雜質在篩漿區停留時間短，顯著降低雜質循環的可能性。

5、所需進漿壓力低。

1. The fine screen drum with a width of 0.15mm, which is set after the coarse screen, can effectively remove the fine impurities in the pulp and ink particles with a size greater than 200um. It is particularly noteworthy that the removal rate of stickies in the pulp can reach more than 90%, which is the latest equipment and technology method to replace various thermal dispersion equipment at home and abroad at present. (For the comparison of the seam screen screening method and thermal dispersion method to solve the problem of stickies, see the article "Application of seam screen instead of disperser in the waste paper system" published in the third issue of Paper and Papermaking, 2000, by Professor Chen Jiaxiang, State Key Laboratory of Pulp and Paper Engineering, South China University of Technology for details.).

2. Heavy impurities are discharged into the heavy impurity tank at the bottom of the screen body to prevent wear and damage to the rotor and screen drum, and reduce downtime.

3. Light impurities and air are quickly expelled from the top tail slurry outlet.

4. High screening efficiency, short residence time of impurities in the screening slurry area, significantly reducing the possibility of impurity circulation.

5. The required slurry inlet pressure is low.

●產品介紹 instruction

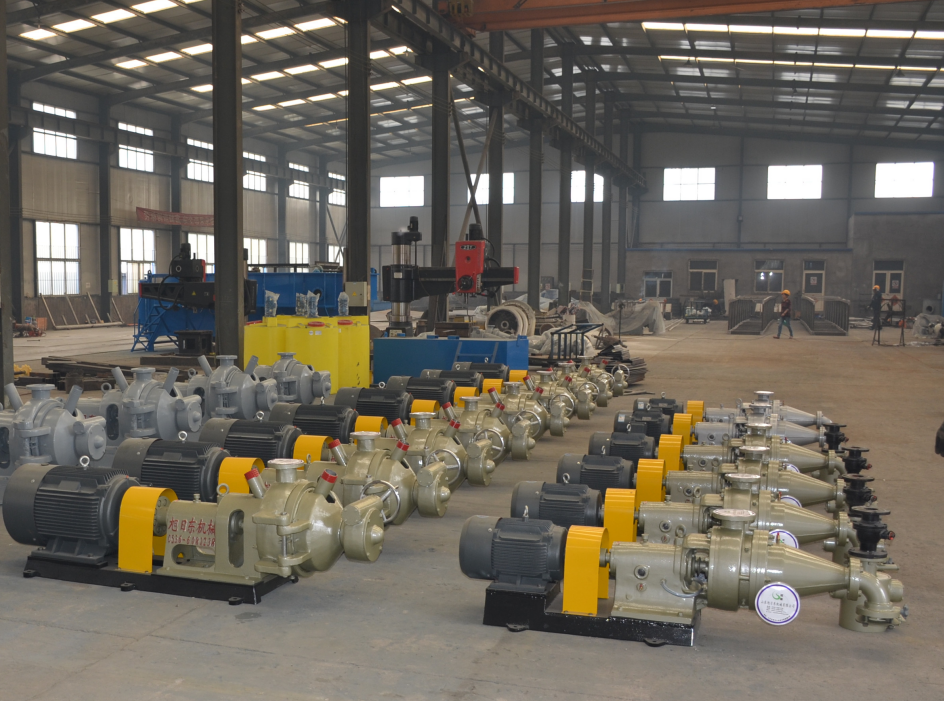

本機為臥式單方向進漿，徑向上方出漿。主要由機座、電動機、機殼、轉子、定子、進刀機構、減速機構等組成。該機采用整體機座，剛性好，動轉平穩。該機主要用于造紙行業漿料粗、精磨及損紙、廢紙?jiān)僦茲{，特別適合于棉漿、木漿、麻漿等長纖維漿料的打漿。

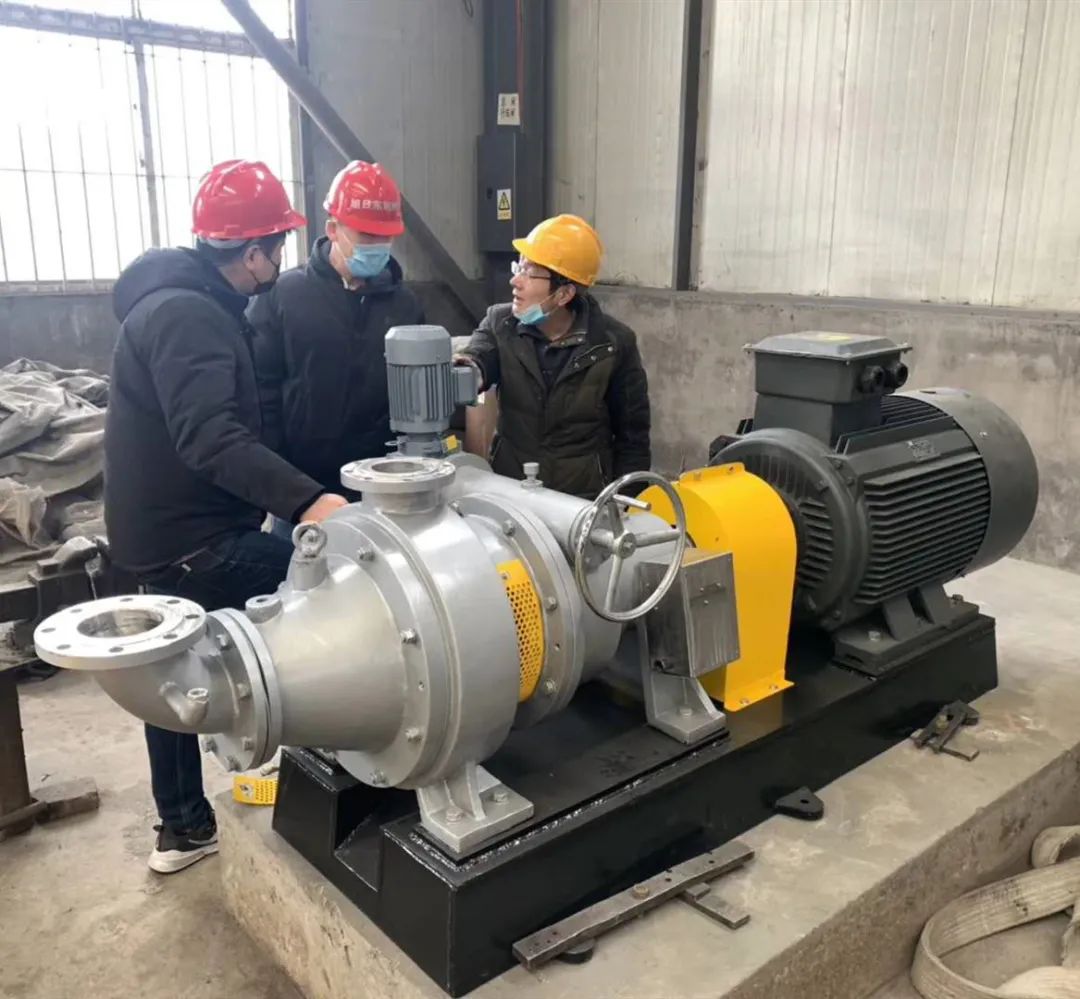

This machine is designed for horizontal unidirectional slurry feeding and radial upward slurry discharge. It mainly consists of a machine base, an electric motor, a casing, a rotor, a stator, a feed mechanism, a reduction mechanism, etc. The machine adopts an integral base, with good rigidity and smooth movement and rotation. This machine is mainly used for coarse and fine grinding of pulp in the papermaking industry, as well as for repurposing damaged paper and waste paper. It is particularly suitable for pulping long fiber pulp such as cotton pulp, wood pulp, and hemp pulp.

●設備優點 advantage

1、有較長的磨漿區、對纖維切斷能力較強；

2、毛細纖維損傷較少，纖維的形態及勻整性好，磨漿后，抄成紙的裂斷長、撕裂度、耐破度指標高；

3、低能耗、產量較高、效率較高、低噪音、易維修。

4、配置手動、電動操作裝置。

1. Has a longer grinding zone and strong fiber cutting ability;

2. Capillary fiber damage is minimal, and the fiber morphology and uniformity are good. After grinding, the paper produced has high indicators of fracture length, tear resistance, and burst resistance;

3. Low energy consumption, high output, high efficiency, low noise, and easy maintenance.

由旭日東研發生產的制漿設備效率高，能耗低，制漿效果好，操作簡單，維護方便，可根據需求客戶定制全自動控制系統，自動調漿、自動供漿，老板出差、在家可以通過手機、平板、電腦檢測等遠程智能操作。

The pulping equipment developed and produced by XuRiDong has high efficiency, low energy consumption, good pulping effect, simple operation and easy maintenance, and can be customized according to the needs of customers with automatic control system, automatic pulping, automatic pulp supply, the boss can travel at home through mobile phones, tablets, computers and other remote intelligent operation.
